Additional information
| Packaged Dimensions | 22.50"L x 6.00"W x 4.00"H, 571.50mmL x 152.40mmW x 101.60mmH |
|---|---|
| Packaged Weight | |
| UPC Code |

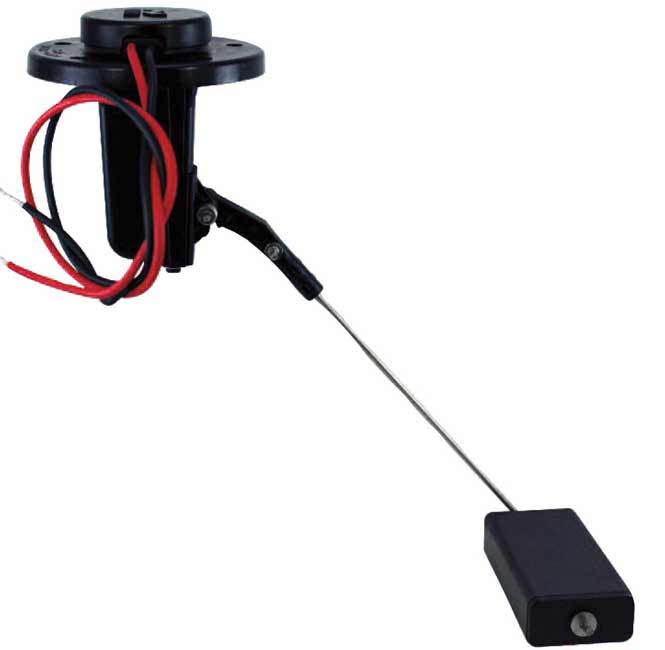

Universal Reed Array Sending Unit – Adjustable 6-24″
Universal Reed Array Sending Unit – Adjustable 6-24″
035791-10
The marine industry’s most comprehensive line of OEM Compatible fuel senders and remote gauges. Moeller offers a complete line of Fuel Level Sending Units designed for top mounting in aluminum, plastic or stainless steel fuel tank on all types of marine vessels.
Description
The marine industry’s most comprehensive line of OEM Compatible fuel senders and remote gauges. Moeller offers a complete line of Fuel Level Sending Units designed for top mounting in aluminum, plastic or stainless steel fuel tank on all types of marine vessels.
- Designed for top mounting in aluminum, plastic or stainless steel fuel tank on all types of marine vessels.
- Ethanol compliant.
- Exceeds current NMMA and ABYC specifications.
- Calibrated to the Industry Standard of 33-240 Ohms.
- Complete with 5 hole gasket and screws.
- Available with a limited lifetime warranty.
- Protected from corrosion, internal and external to the fuel tank.
- Standard with a SAE 5 hole mounting bolt pattern.
- Head is constructed of Engineer-grade thermo-polymer.
- Suitable for gas, ethanol, diesel, bio-diesel and non-potable water.
- Temperature range: -40ø F to 176ø F, -40ø C to 85ø C.
- Meets the following required standards: ISO 10088, ABYC H-24, 33CFR, 183.590 and ISO 8846.
- Calibrated to the Industry Standard of 33-240 Ohms.
- Complete with 5 hole gasket and screws.
- Compatible with dash mounted gauge (33-240 Ohms).
- Tank Depth: 6-24″ or 152-610mm.<
